How does it work?
A solar hybrid inverter is a key component in a solar power system that combines the functionalities of a solar inverter and a battery inverter, allowing for efficient energy management between solar panels, batteries, and the grid. Here’s how it works:
1. Basic Functions of a Hybrid Inverter
Converts DC (Direct Current) from solar panels into AC (Alternating Current) for home use.
Manages battery charging/discharging to store excess solar energy.
Can interact with the grid or importing power as needed.
2. How a Solar Hybrid Inverter Works – Step by Step
Step 1: Solar Power Generation
Solar panels generate DC electricity from sunlight.
The hybrid inverter converts this DC into AC power for household appliances.
Step 2: Powering Home Loads
The inverter supplies solar-generated AC power directly to home appliances.
If solar production exceeds home demand, excess energy is either:
Stored in batteries (for later use).
Step 3: Battery Charging/Discharging
When solar power is insufficient (e.g., at night or on cloudy days), the inverter:
Draws stored energy from the battery bank (converting DC to AC).
If the battery is depleted, it pulls power from the grid (if connected).

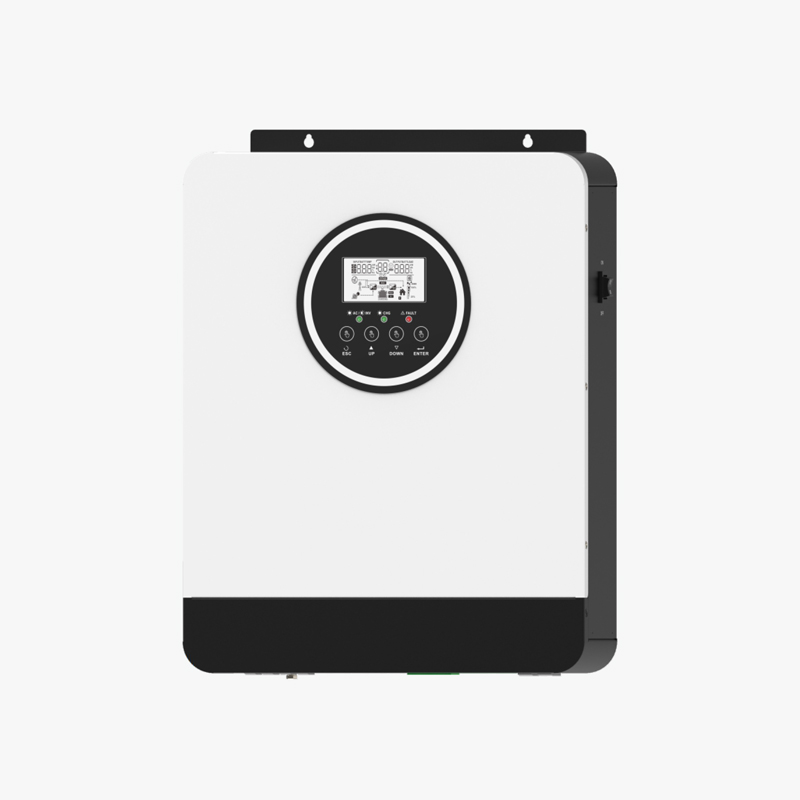

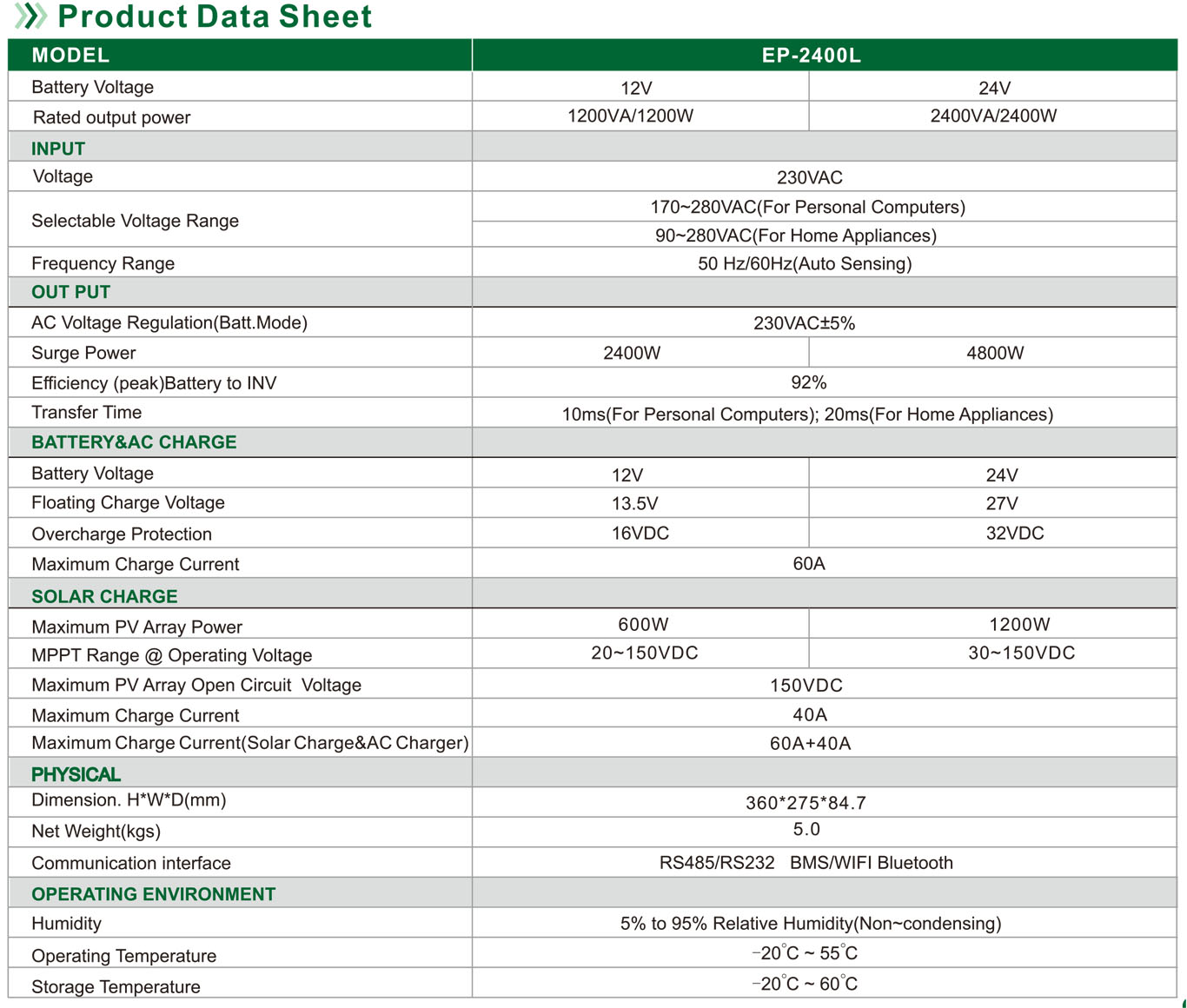

Features（EP-2400L）

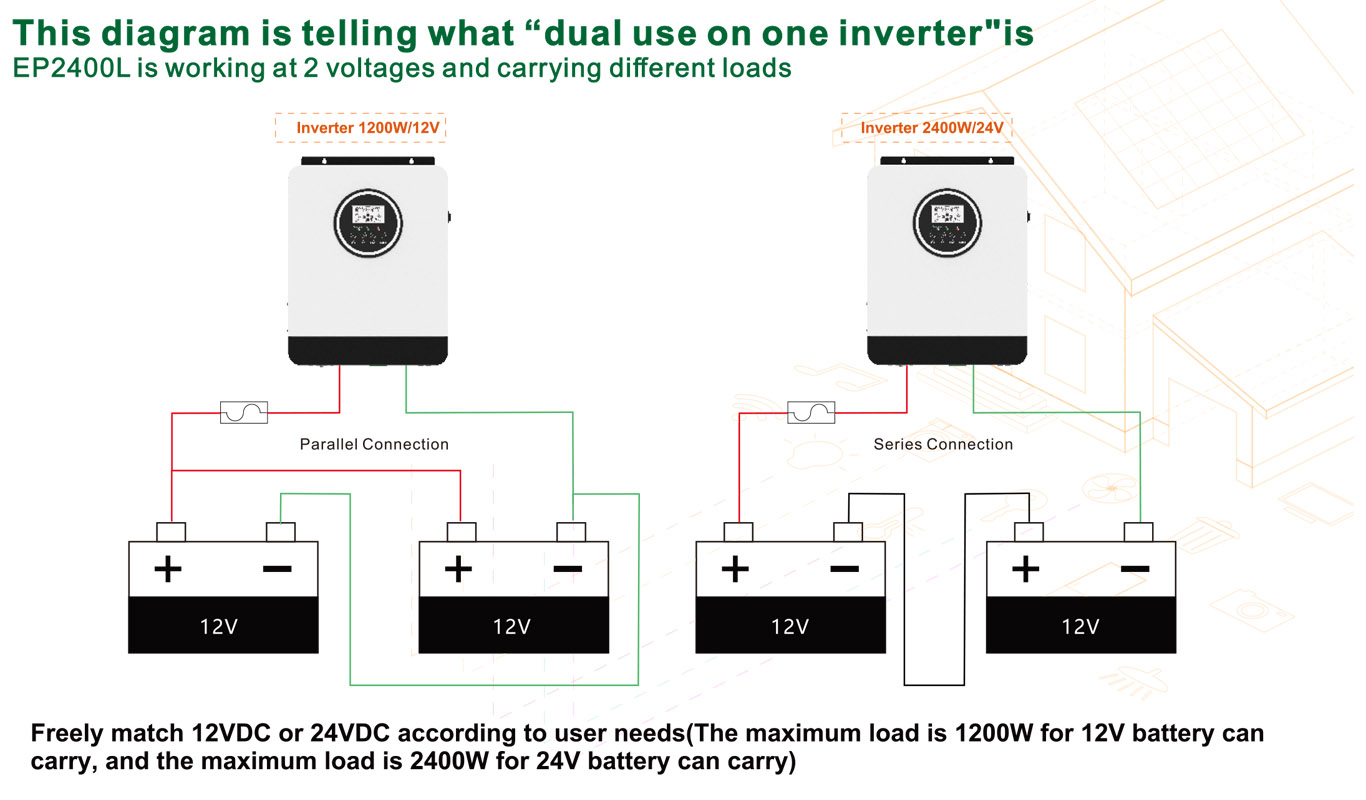

●Work at 2 different voltages :12VDC or 24VDC. It can meet different loads needs of users
●Rated power is 1200W when work at 12VDC, ratedpower is 2400W when work at 24VDC
●Dual use on one inverter -- World ' s first creation in 2025
●Pure sine wave output inverter
●According to the requirements of load ( household appliances / personal computers ),the input voltage range of utility grid can be selected
● According to the battery requirements , the charging current can be set through LCD
●Solar energy and utility grid can power loads at the same time
●AC input is compatible with mains and generator
●Automatic restart function when mains power is restored
●Overload / Over temperature / short circuit protection
●The intelligent charging design of battery makes the battery more fully utilized
●RS485 port Used for communication with BMS
●Cold start function
●Built - in MPPT operating voltage range 20V~150V, open circuit voltage 500Voc
●WIFI remote monitoring Bluetooth near end sampling ( optional )
●RGB lights ( optional )
FAQ(Frequent Asked Answers)
1. Can a Hybrid Inverter Work Without a Battery?
A:Yes, but with limitations:
It can still convert solar power for immediate use or grid export.
No backup power during outages (battery required).
2. How Long Can a Hybrid Inverter Power My Home During an Outage?
A:Depends on:
Battery capacity (e.g., 5kWh, 10kWh, etc.).
Solar generation (if sunny, it can recharge the battery).
Power consumption (running fridges, lights, etc.).
Example: A 5kWh battery could power basic loads (~1kW) for 4-5 hours.
3. How Do I Maintain a Hybrid Inverter?
A:Keep it cool & ventilated (avoid direct sunlight).
Check battery health regularly (if applicable).
Clean dust/debris from vents.
4. What is MOQ for the model?
A:We accept sample order for quality check, You can order 1pcs sample for check.
5. What is your lead time for the model?
A: For bulk quantity orders, 7-10 working days after order, Some popular models we have ready stock in warehouse and our UAE distribution center, can shipping immediately from both China or UAE.
6. Can you put our brand on the product and packing?
A: Yes, We accept customize orders, We can print your logo on the inverter and packing box.
