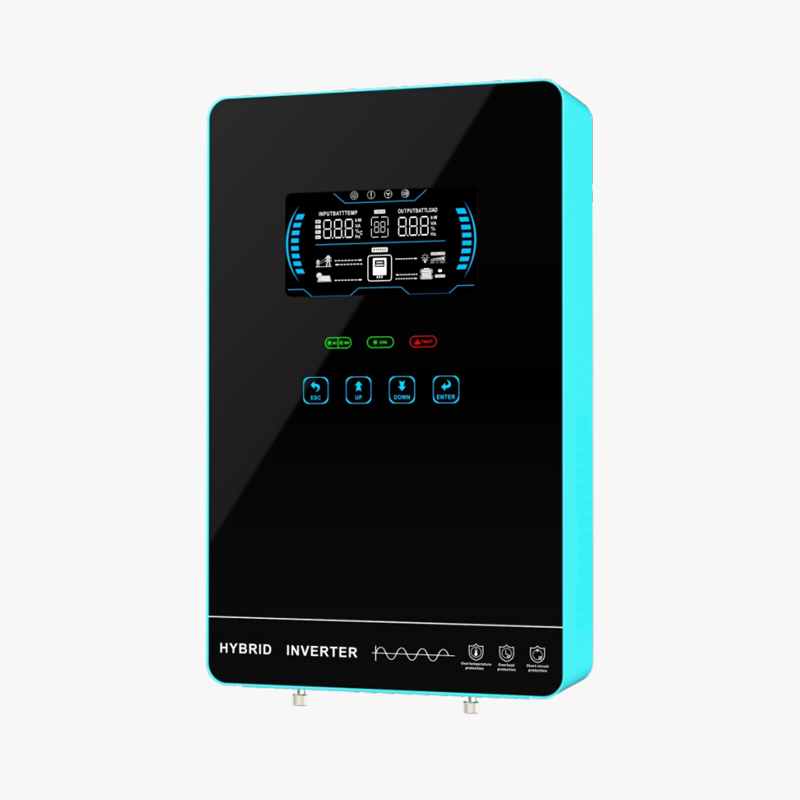

24V 4.5KW / 48V 6.5KW solar hybird inverter, MPPT 450Vdc 150A, MPS-VX series

How does it work?

A solar hybrid inverter is a key component in a solar power system that combines the functionalities of a solar inverter and a battery inverter, allowing for efficient energy management between solar panels, batteries, and the grid. Here’s how it works:

1. Basic Functions of a Hybrid Inverter

Converts DC (Direct Current) from solar panels into AC (Alternating Current) for home use.

Manages battery charging/discharging to store excess solar energy.

Can interact with the grid or importing   power as needed.

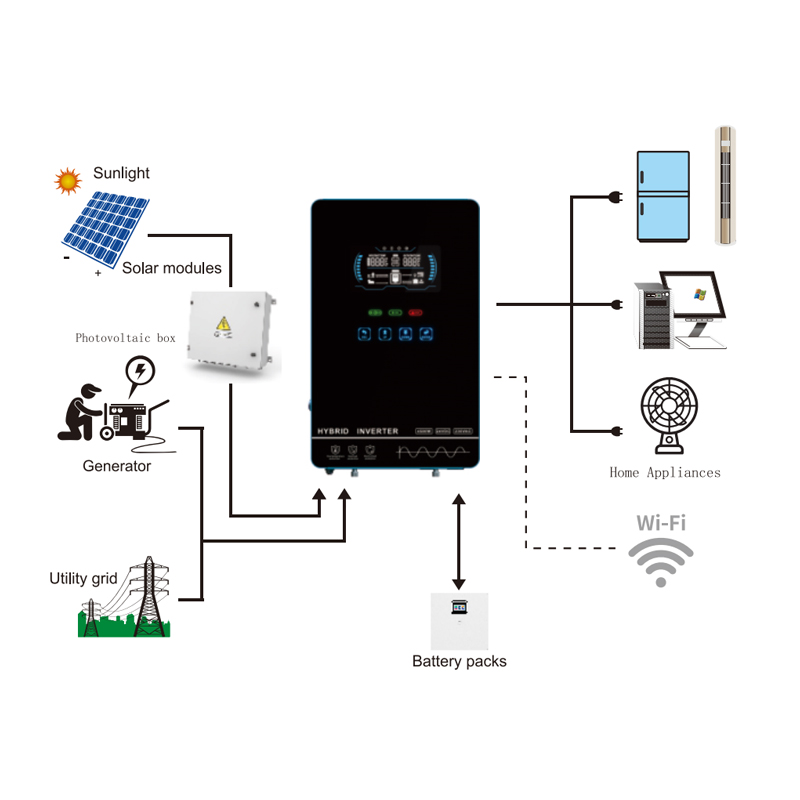

2. How a Solar Hybrid Inverter Works – Step by Step

Step 1: Solar Power Generation

Solar panels generate DC electricity from sunlight.

The hybrid inverter converts this DC into AC power for household appliances.

Step 2: Powering Home Loads

The inverter supplies solar-generated AC power directly to home appliances.

If solar production exceeds home demand, excess energy is either:

Stored in batteries (for later use).

Step 3: Battery Charging/Discharging

When solar power is insufficient (e.g., at night or on cloudy days), the inverter:

Draws stored energy from the battery bank (converting DC to AC).

If the battery is depleted, it pulls power from the grid (if connected).

Features（MPS-VX series）

þ On / Off Grid Solar Inverter

þ Working without batteries in sunny day

þ Under Battery Mode can adjust ac voltage to 110vac or 220vac

þ SBU Mode : Utility Power , battery and PV Power complement each other

þ Pure sine wave solar inverter

þUnique glass top cover design with 6.25inch LCD display and touchable buttons

þ Built - in 150A MPPT ( Max PV 8000W) solar charger

þ High PV input range from 55V-450Vdc

þSmart battery charger design for optimized battery performance Configurable AC / Battery input priority via LCD setting

þ Auto restart while PV is recovering

þOver - load , over temperature and output short circuit protection

þ Cold restart function

þ Built - in lithium battery automatic activation

þ Communication with RS232/RS485

þ WiFi monitoring function ( optional )

þ Anti - dust kit for harsh environment ( optional )

þ Restore default Settings with one click

FAQ(Frequent Asked Answers)

1. Can a Hybrid Inverter Work Without a Battery?

A:Yes, but with limitations:

It can still convert solar power for immediate use or grid export.

No backup power during outages (battery required).

2. How Long Can a Hybrid Inverter Power My Home During an Outage?

A:Depends on:
Battery capacity (e.g., 5kWh, 10kWh, etc.).

Solar generation (if sunny, it can recharge the battery).

Power consumption (running fridges, lights, etc.).

Example: A 5kWh battery could power basic loads (~1kW) for 4-5 hours.

3. How Do I Maintain a Hybrid Inverter?

A:Keep it cool & ventilated (avoid direct sunlight).

Check battery health regularly (if applicable).

Clean dust/debris from vents.

4. What is MOQ for the model?

A:We accept sample order for quality check, You can order 1pcs sample for check.

5. What is your lead time for the model?

A: For bulk quantity orders, 7-10 working days after order, Some popular models we have ready stock in warehouse and our UAE distribution center, can shipping immediately from both China or UAE.

6. Can you put our brand on the product and packing?

A: Yes, We accept customize orders, We can print your logo on the inverter and packing box.
