3KW full set hybird off grid solar system (Solar generator) with 5Kwh Lithium battery

Discription

3KW hybid system is a best solution for remote locations where grid power is unavailable or unreliable,or for those seeking complete energy independence. The all-in-one hybird solar inverter that can manage all   you throw at it, connect 3.3KW solar panels + 5KWH lithium-Iron Battery bank for a easy for house power supply solution.Or connect to grid or generator to let it working solar + backup modes.

This solar generator allowing you to use solar power, battery storage, and utility grid/generator interlligently.It provide energy independence.During the day, Solar panels power your home and charge the batteries, at night or during outages, power is drawn from the batteries first,then from the grid if needed. If there is no grid or generator ,the system can operate in off-grid mode, keeping essential appliances runing.

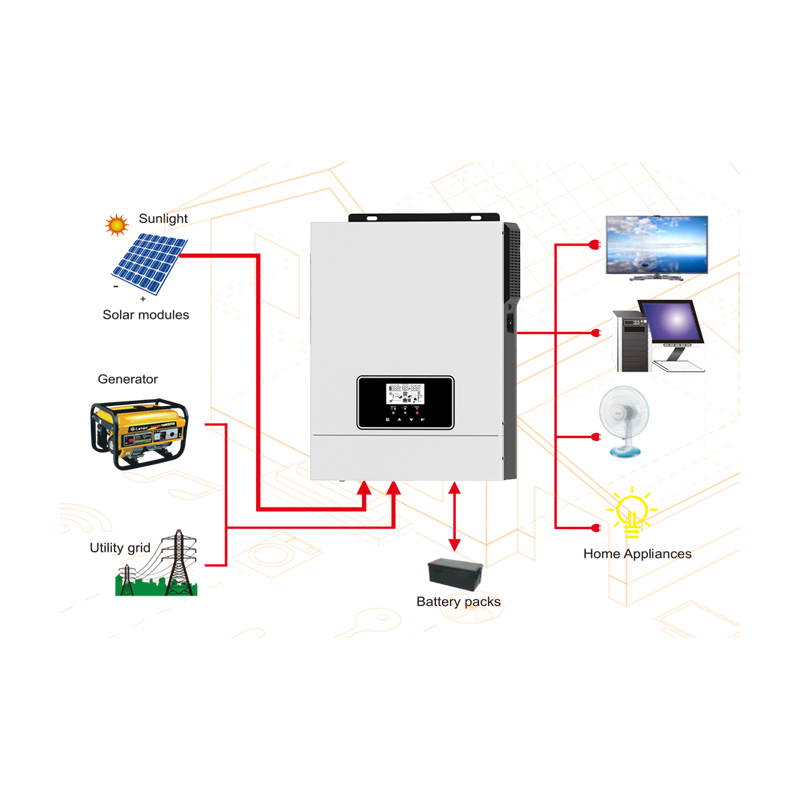

Hybird Solar System Diagram

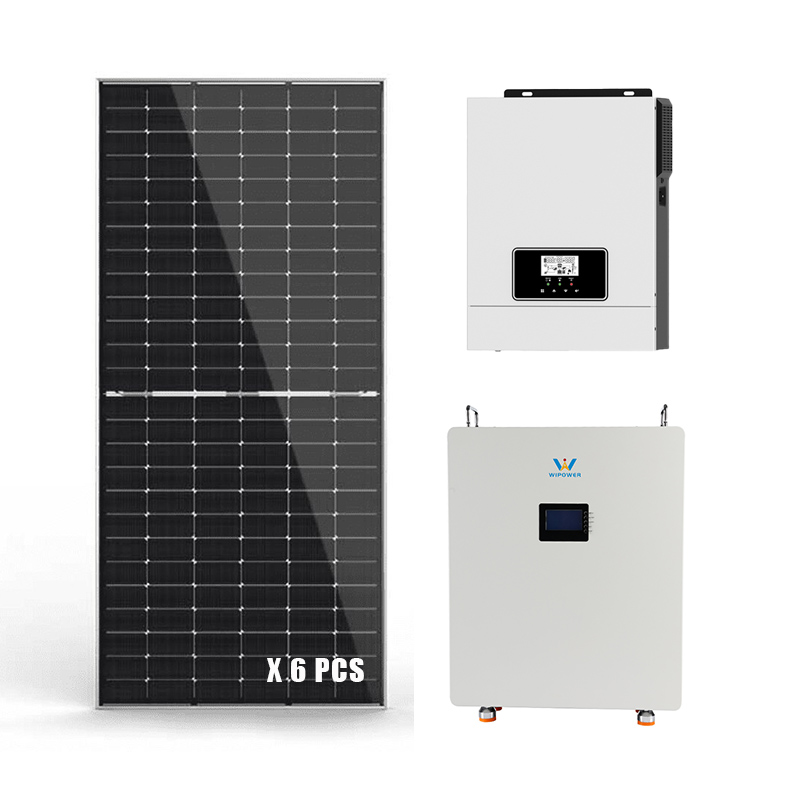

What is the system included?

1. Quality Bifacial 560Watts solar Panels X 6pcs, Double side high efficiency with 30 years wanrranty.

2. 3KW hybid solar inverter x 1pcs, Built-in MPPT solar charge controller, Pure sin wave 3kw inverter.

3. 51.2V 100Ah(5.12kwh) LIFEPO4 battery X 1pcs, Upto 6000 cycles lifespan and 8 years warranty. Built-in smart Battery Management System(BMS),   made of Brand A grade battery cells .

4. DC distribution box x 1pcs, 2 in 2 out 500Vdc DCDB with Thurder suger protected and 20A fuse, Protect your device to provide longer lifetime.

5. (Optical) Ground or rooftop fixing structure, easy installation solar panel mount structure.

6. Fixing accessories, Solar wire, battery wire etc , pre-designed connection wire for solar and batteries, Easy self fixing.

What can it power?(Load Capacity)

Typical Appliances:

Refrigerator (200W)

LED Lights (10W x 10)

Fan (50W x 2)

Laptop/TV (100W)

1HP Water Pump (750W) or 1ton AC (1.0kW), but not all at once.

Continuous Load: ~2.5kW (surge up to 4.5kW for motor startups).

Our Cases

Solar Panel Mounting Structure Scematic Video

Frequently Asked Questions(FAQ)

1.What;s the difference between hybird, on-grid, and off-grid solar system?

A:On-grid: Connects to the grid, no battery backup.

   Off-grid: Fully independent, relies on batteries, no grid connection.

   Hybrid: Combines both, with battery storage and grid access.

2.What are the advantages of a hird solar system?

A:Energy independence)reduces grid reliance)

   Backup power during outages(if battery-supported)

   Maximizes solar energy usage.

3.Is a hybird solar system better than a grid-tied system?

A:It depends oon your needs-Grid-tied is cheaper if you only want to reduce electriclity bills, Hybird is better if you want to use where no grid or a generator as second power source.

4.How long does it takes to install a hybird solar system?

A:Typically 1-3 days for residential system, depending on comlexity.

5.Do hybid solar systems require maintenance?

A: Solar panels need occasional cleaning

    Batteries may require monitoring and replacement, Gel,Acid battery after 3-5 years, Lithium battery after 10-15 years.

6.Can i expand my hybird solar system later?

A:Yes, Our designation allow adding more panels or batteries.

7.How do i know which system I need?

A:You can contact us and provide your loads and its useage detials, We will design and customize the solar system.

8.Can i install the solar system by myself?

A:If you have well technical skills would be helpful. Our full set solar system with well designed wiring connections, and a set fixing kits also included, We will provide a clear connection guide, To follow our guide, can easily install the solar system.
